| 產品名稱： | 列管式換熱器 |
| 產品編號： |
產品描述
1.產品簡介
列管式換熱器是公司常規產品之一，主要用于提取生產線各個環節兩種介質之間的熱交換，主要是用于汽-液之間的熱交換，有用于加熱，有用于冷卻。
本公司生產的列管式換熱器，完全按照GMP的規范要求設計、生產制造。
本公司生產的列管式有立式、臥式，臥式的又有固定式、可拆卸式。

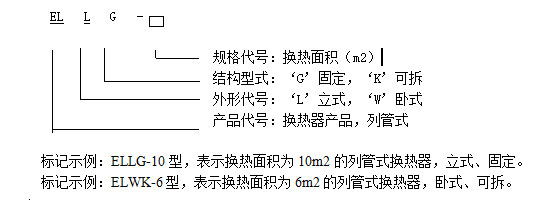

2.型號代號：
3.型號規格

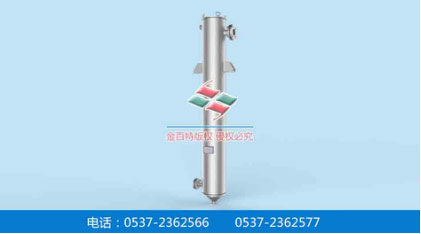

3.1.立式列管式換熱器
3.1.1.固定式
特點：立式，固定不可拆。

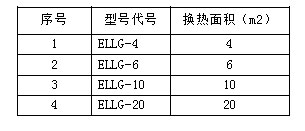

型號規格一覽表

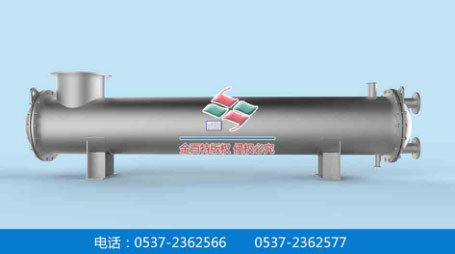

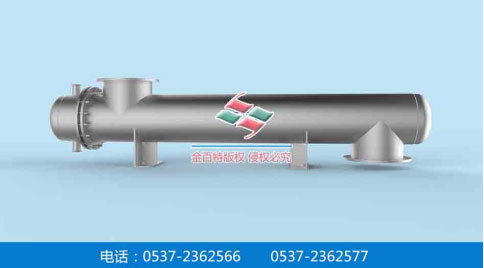

3.2.臥式列管式換熱器
3.2.1.固定式
特點：臥式，固定不可拆。
型號規格一覽表
3.2.2.可拆式
特點：臥式，可拆。
型號規格一覽表
3.3.上述任一產品，都可根據用戶要求設計定制換熱面積，以及進出口管徑等。
4.配置
4.1.標準配置
管件、管口
4.2.定制配置
保溫層
5.材質
材質有sus30408、sus316等選擇，也可根據客戶的要求定做特種材質。
6.表面處理

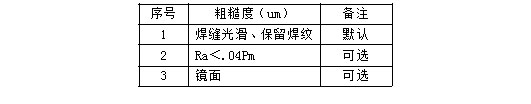

6.1.1.內表面粗糙度有下列選擇

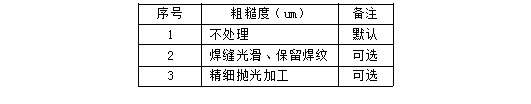

6.1.2.外表面粗糙度有下列選擇
